Making An Impression

Time for some arts and crafts!  Let's jump right into getting a mold for the top half of a cartridge case...


An original Tandy cartridge case seems like the obvious place to start.  It certainly meets the required measurements for the cartridge slot on the computer.  Plus, there are circuit board designs available that fit the standard case.  Hopefully no over-zealous Tandy lawyers will be coming after me!  Anyway, the intellectual property concerns over a plastic box should be limited enough to make that unattractive...hopefully...

One "interesting" part of this design is the sliding door that covers the PCB card edge.  This poses a couple of difficulties.  The least of the issues is that it requires a custom spring to shut the door when the cartridge is removed from the computer.  A bigger concern is that the shape of the door itself has multiple overhangs that make it difficult to mold.  Also, the door has a slot cut into it, which either further complicates the mold making process or requires a step to machine a slot in the pieces I produce.

Making a new spring might not be too hard?  And using a two-piece mold may solve some of the shaping problems.  But extra effort and clever mold making seems like an unnecessary complication just to produce such a superfluous piece.

So, I will eliminate the sliding door and produce a bottom part of the mold that just leaves the PCB card edge exposed.  I think that the PCB is sufficiently recessed so that the case will still protect it while being a lot easier to produce.  One issue is that this would leave an opening in the top part of the case that looks a bit unfinished.  In order to fill that, I have used some modeling clay that I have hand-sculpted into a shape that looks a bit more intentional.  Not exactly machine precision, but it serves the purpose. :-)  A little more clay was used to fill-in some holes that I don't want as part of the mold.
Case Top Model Read To Be Molded

Before we pour the mold, we need something to contain the poured silicone.  I started by drawing the outline of a box on a piece of engineering paper.  Obviously the measurements of the box are big enough to surround the cartridge case, but they also leave some space around the sides and on top to give the silicone mold some strength and stability.

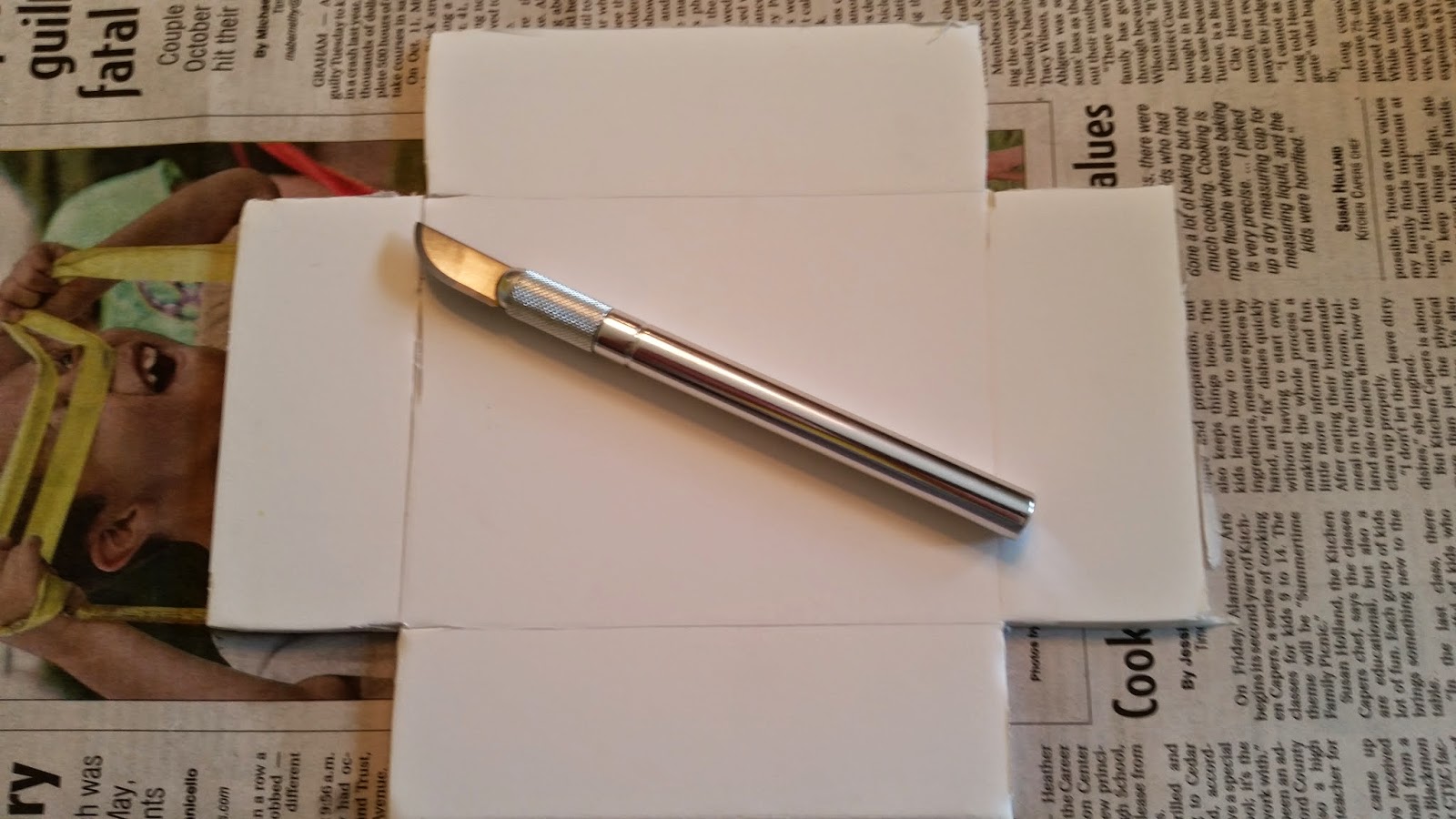

I laid the paper on top of a chunk of foam board.  This craft material is strong enough to provide some structural integrity while pouring the mold, plus it has a non-porous surface that will keep the silicone in place during the pour.  I used a hobby knife to mark the corner cuts through the paper.  This was followed by using the hobby knife and a straight edge to cut-out the boundaries of the box.    Also, cuts were made along what will be the exterior edges of the bottom in order to facilitate bending-up the sides to form the shape of the box itself later.

One last step before building the box is to glue the model into place along the bottom.  This is a crucial step, because the silicone has enough weight to move the model around during the pour.  Also, the silicone could get beneath the model and essentially ruin the mold be encasing the model and forcing you to cut it apart just to retrieve the model.  Something like that will most likely render the mold unusable, so glue the model down to avoid it -- I used glue dots!

The final step is to fold-up the sides of the box and secure them into place.  For that, I used my wife's trusty hot glue gun.  Lots of "craft" people use this for everything, and it is handy stuff.  Just be careful -- not only can it burn you like a soldering iron, the hot glue will stick to you while it burns!  And it pulls body hair when you try to remove it from your skin...ask me how I know! :-)

Case Top In The Mold Box

Now it is time to pour the mold.  The product in use is a mold-making silicone.  There are a variety of options here, but for this I have chosen a product designed to be extra supple.  This helps in modeling overhangs and undercuts, and it also is a bit more pliable when it comes time to remove objects from the mold after casting...

The silicone comes in two parts, the base and a catalyst.  This product comes in a "1 pound" size, which is a lot more than I need here.  But, using it all means no messy measurements and it gives some extra "heft" to the mold.  Plus it means that I can just use the product container for the mixing and pouring.  This is my kind of recycling! :-)

It is important to mix the base and catalyst thoroughly.  A poorly mixed pour may not properly harden, ruining the mold.  The mixture has a long "work" time, so there is no need to hurry.  Be sure to stir until you get a consistent color, in this case, pink.

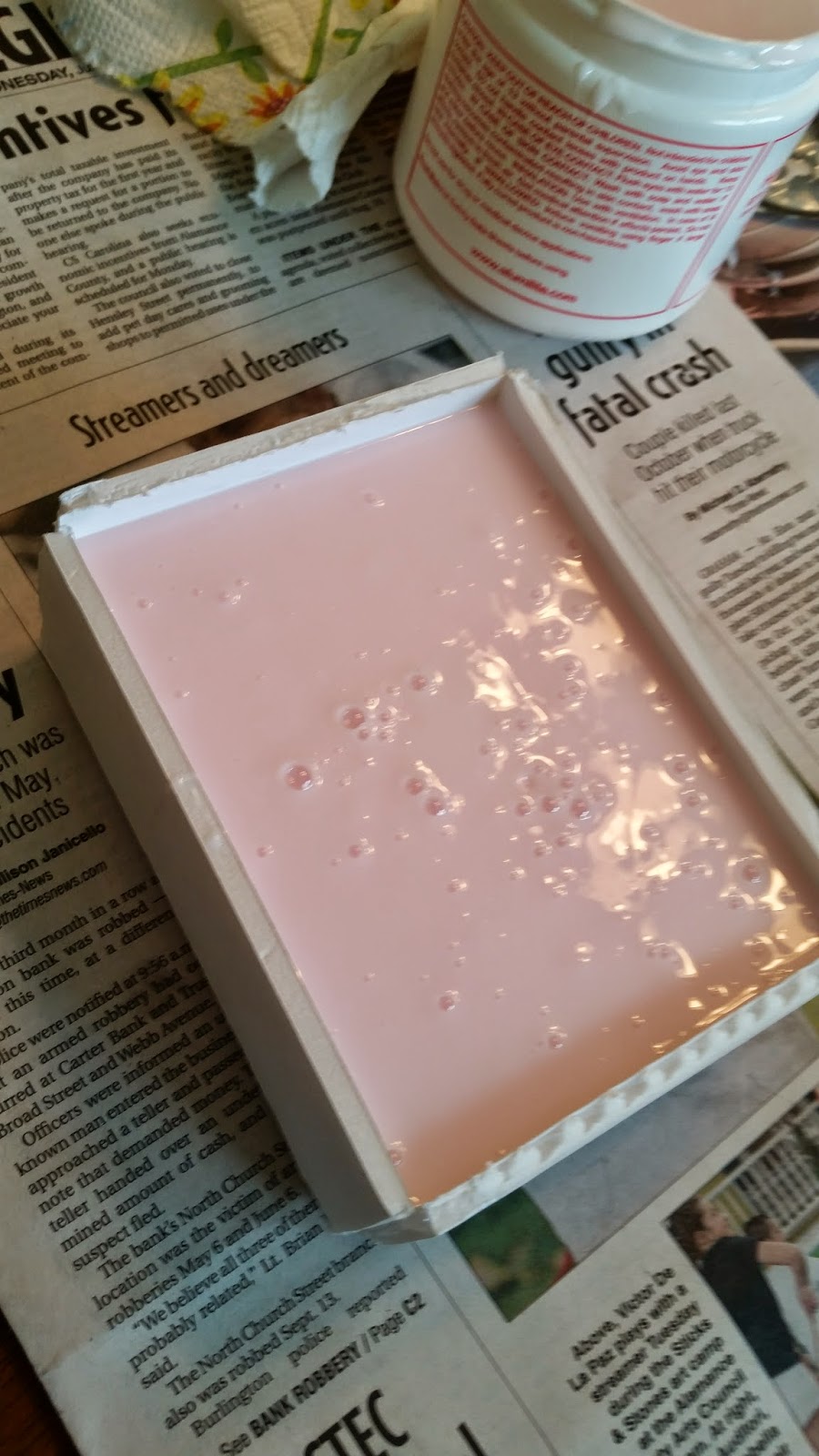

Once thoroughly mixed, the silicone can be poured into the mold.  It is recommended to pour slowly from one corner of the box.  I think this is intended to limit the amount of air bubbles in the mold.  Nevertheless, air bubbles will get into the mold during the pour.  Some will bubble to the top naturally, but others are happy to cuddle next to the model and ruin the mold...

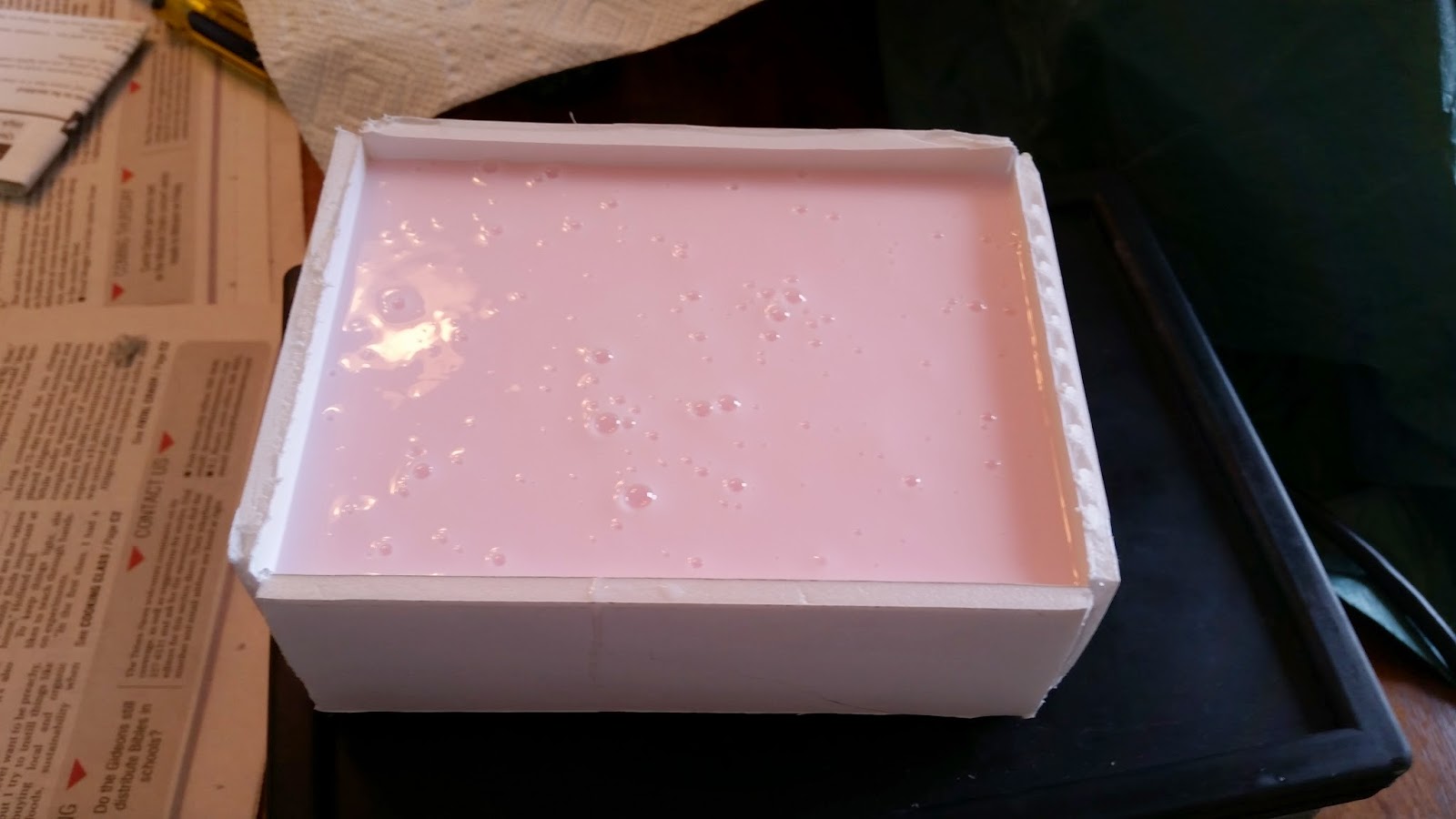

There are a number of techniques for removing air bubbles, including encasing objects in a vacuum bag to remove air.  A somewhat simpler method is to shake the bubbles out.  I use a vibration table designed for use in dentist offices for making dental molds.  These can be had on eBay for a price that may or may not be reasonable, depending on your perspective...

After 20-30 minutes, most of the bubbles will have shaken their way to the surface of the silicone.  I got a bit impatient and used a tooth pick to pop all the big ones, but that probably isn't necessary.  Anyway, the product shown here has a cure time of 18 hours.  At this point the mold has to be set aside and allowed to harden.

Poured Mold Starting to Cure

The final step is removing the mold from the box and extracting the model from the mold.  Start by breaking the glue joints holding the sides of the box together.  This is not at all difficult, but sometimes it is necessary to trim some of the silicone from the edges of the box either to shape what will be the bottom of the mold or just to keep from damaging the mold itself.

Once the mold is removed from the box, it is common to find some overflow silicone has oozed over the edges of the model.  Using a hobby knife to trim the ooze helps to clean-up the edges at the top of the mold.  At this point, the model can be extracted from the mold, revealing the impression left to be filled by plastic resin later.

Silicone Mold Ready For Plastic Resin
So, that covers the process of making a silicone mold.  The process for making the mold for the bottom of the cartridge case is similar enough that I won't bother with documenting that.  The next step will be pouring some plastic resin into the mold -- be sure to stay tuned!
